HOME » PRODUCT » PWM Signal Control Brushless Fuel Pump Controller (External) - 72002

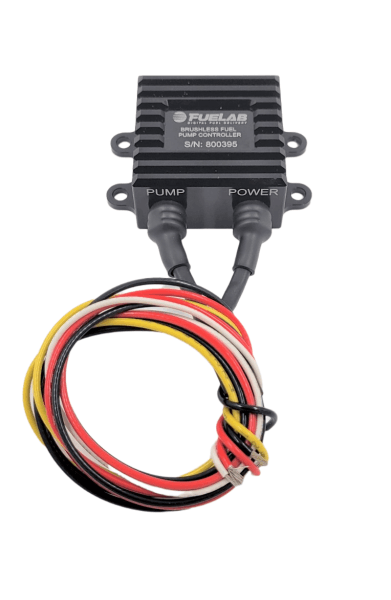

PWM Signal Control Brushless Fuel Pump Controller (External) - 72002

PWM Signal Control Brushless Fuel Pump Controller (External) - 72002

Calculate flow rate required given horsepower. Learn more

SKU: 72002
  • Electronic (External) DC Brushless Fuel Pump Controller (Variable Speed, PWM Input)
  • Limited Lifetime Warranty
Loading options…

PWM Input Signal (Variable Speed)

Features

  • Compatible with 3-Phase DC Brushless Fuel Pumps
  • (3-wire) without Internal Controllers Only
  • 25 Amp Max output Capacity
  • Billet Aluminum Enclosure
  • Backed by a limited lifetime warranty



Pulse Width Modulation Compatibility (PWM)

  • Compatible with most aftermarket ECU's with PWM output frequency
  • Compatible from 100Hz to 5000Hz
  • AEM
  • ECU Masters
  • Fueltech
  • Haltech
  • Holley
  • Link Engine Management
  • Megasquirt
